ASR1001-HX Datasheet

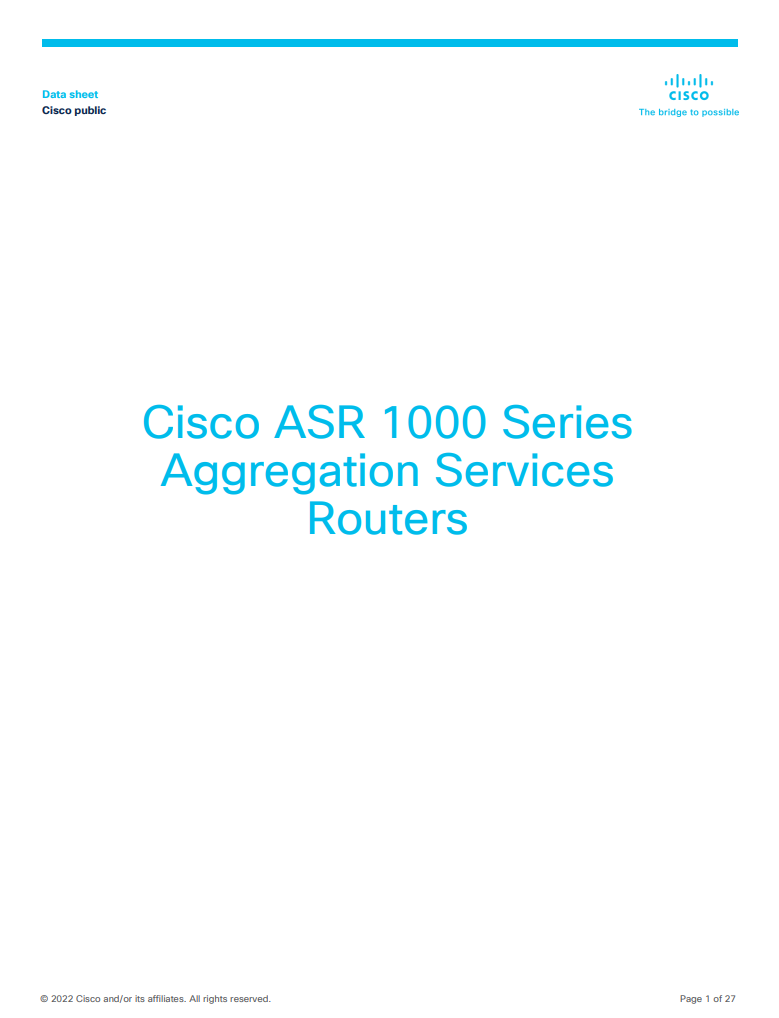

Cisco ASR 1000 Series Aggregation Services Routers Data Sheet
Cisco ASR 1000 Series Aggregation Services Routers provide a Software Defined WAN platform that aggregates multiple WAN connections and network services including encryption and traffic management, and forward them across WAN connections at line speeds from 2.5 to 200 Gbps. The routers contain both…
- Physical dimensions: 1.7 x 17.2 x 22.5 inches (4.3 x 43.6 x 57.2 cm)
- Weight: 22.5 pounds (10.2 kg)
- Power supply: Dual AC or DC power supplies (100-240V AC or -40 to -72V DC)
- Power consumption: 130W (base system) to 290W (fully configured)
- Operating temperature: 32 to 104°F (0 to 40°C)
- Storage temperature: -40 to 158°F (-40 to 70°C)
- Operating humidity: 5 to 85% non-condensing
- Storage humidity: 5 to 95% non-condensing
- Rack-mountable: Yes, fits standard 19-inch rack
- Redundancy: Hot-swappable components and redundant power supplies for high availability
- Supported protocols: IPv4, IPv6, MPLS, BGP, OSPF, IS-IS, EIGRP, RIP, PIM, LDP, RSVP, VPLS, L2VPN, L3VPN, DMVPN, GETVPN, FlexVPN, and more
- Security features: Hardware-based encryption, firewall, and VPN capabilities, as well as support for Cisco TrustSec and Cisco Stealthwatch
